Feature

· Adopts core European and American technology, ensuring mature, stable and reliable performance.

·  Forward strapping technology with intelligent dual-channel design greatly improves production line efficiency.

·  Intelligent push rod with servo alignment system ensures stable and efficient carton conveying to the strapping position.

·  Strapping position is fully adjustable to effectively avoid carton lid flaps and folds.

·  Adjustable strapping force delivers;neat, tight and firm packages; easy for operators to master.

·  Strapping direction parallel to the main machine reduces strapping consumption.

·  Vertical strapping feeding design supports various economical strapping materials, lowering packaging costs.

·  24V constant-temperature welding system ensures firm and aesthetic strap joints.

·  Automatic strap splicing device enables non-stop strap replacement without affecting the folder gluer speed, guaranteeing efficient operation of the entire production line.

Specifications

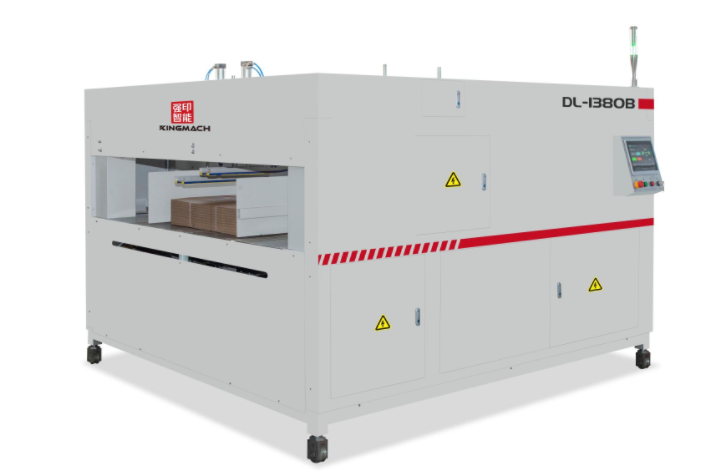

Model	DL-1380B Standard Type	DL-1380Q All-round Type
Dimensions	2400*2300*2000	3100*2300*2000
Max. Strapping Size	1400*1200*320	1400*1200*320
Min. Strapping Size	320*200*20	320*200*20
Strapping Speed (Single/Double)	Max. 24 straps/min ±2	Max. 24 straps/min ±2
Applicable PP Strapping Width Range	5/6mm, 8/9mm	5/6mm, 8/9mm
Total Power	4.6KW	4.6KW
Power Supply	380V 50Hz	380V 50Hz
Left & Right Alignment	Pneumatic control	Servo motor control
Strapping Feed Motor	High-speed motor	Servo motor control
Strap Reels	Dual reels	4 reels
Automatic Splicing	No	Standard
